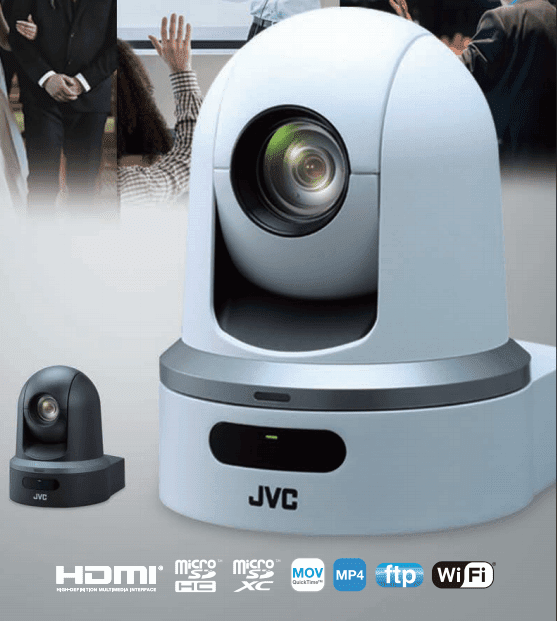

JVC KY-PZ100 Robotic PTZ Network Video Production Camera (Black/White)
The KYPZ100 is a robotic pan, tilt and zoom video production camera.
It's the first PTZ camera that features JVC's unique IP communications engine providing network connection via WiFi,
4G-LTE, or direct LAN connection.
It's designed to be used as a stand alone remote camera or as part of a multi-camera system in both studio and field environments.
In addition to its 3G-SDI and HDMI outputs,
it is also capable of reliably streaming 1080i/60, 1080p, 720p, 540p and 270p video with 2-channel audio--all with minimal latency and forward error correction.
Camera control is possible from a web browser, or with the dedicated RM-IP100 remote control panel,
or from a from a variety of remote units using standard protocol.
The camera also includes on-board HD recording at up to 50Mbps to a micro SDHC/SDXC card
with the ability to upload the recorded files to an external server.
Plug in a WiFi adapter or LTE modem,
and you'll have the world's most convenient, high quality robotic camera that can be placed virtually anywhere.
JVC KY-PZ100 Key features:
1/2.8-inch CMOS sensor (2.2 million pixels)
Optical zoom lens with 30x zoom ratio (4.3-129mm, f/1.6~4.7)
12x digital zoom
Autofocus and image stabilization built-in.
Fast f/1.6-4.7 maximum aperture for excellent low light
LoLux mode (down to 0.01 lux)
Robotic pan, tilt and zoom
Direct drive motor for smooth, quiet and accurate pan and tilt
Full HD 1080p, 1080i, 720p video
PoE+ equipped: LAN cable enables simultaneous streaming, camera control and power supply
Simultaneous 3G-SDI and HDMI and IP digital outputs
2 channels audio (or 1 channel balanced audio w/phantom power)
USB host connection for WiFi or 4G LTE adapter
LAN connector supports Power over Ethernet
Advanced IP communications capability:
Streaming with SMPTE 2022 forward error correction
Advanced Zixi reliable communication with ARQ, FEC and adaptive bitrate control
Low latency streaming
RTMP streaming directly to content delivery network
(YouTube, Ustream, etc.)
Micro SDHC/SDXC memory card recording (H.264 50Mbps)
PELCO-D control protocol via RS-422/485
Remote control via RS-232C / RS-422, or via IP controller
Time/Date overlay
Can memorize 100 preset settings and positions
Can be mounted upside-down or right-side-up
COMPATIBLE PoE NETWORK SWITCHES
MANF: Comtrend
MODEL: ES-7211PoE
DESCRIPTIONl: 8-port power over ethernet + gigabit switch
NOTE: Powers up to 4 KY-PZ100 cameras at up to 330 feet
*WiFi and 4G LTE require optional external adapter
KYPZ100B Connectors / KYPZ100W Interface:
HD Video Output: SDI output (3G support: BNC x1), HDMI output x1
Audio Input: 3.5mm mini jack x 1 (MIC: Balanced Mono/Imbalanced STEREO with Power) (LINE: Balanced Mono/Imbalanced STEREO)
LAN Terminal: RJ-45 x 1, PoE+: 42V to 57V Ethernet: 100BASE-TX, 1000BASE-T
RS-422: Serial Control (RJ-45)
RS-232C: Mini DIN 8pin (IN), Mini DIN 8pin (OUT)
USB: HOST x 1 (Network Connection)
In the Box:
Direct ceiling mount bracket, Screws (M3), Screws (M2.6),
Wireless remote control, AC adapter, Fall prevention wire,
Template, Instruction manual
